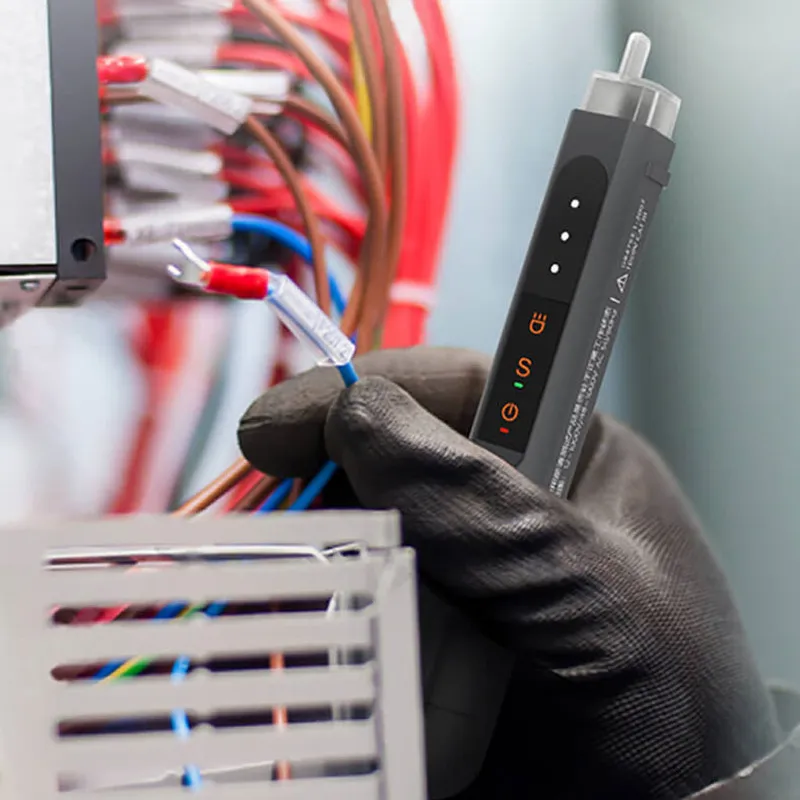

Xiaomi JIMIHOME Non-Contact Electrical Test Pen JM-G2704 – 12V–1000V AC Voltage Detector

The JIMIHOME JM-G2704 Non-Contact Electrical Test Pen is a compact voltage-detection tool designed to identify the presence of AC voltage without requiring direct electrical contact with an exposed conductor.

The JM-G2704 supports a working voltage range of approximately 12V/48V–1000V AC at 50/60Hz and provides both audible and visual alerts when voltage is detected. It also features adjustable high/low sensitivity, a built-in white LED flashlight, low-battery indication and automatic shutdown after approximately five minutes.

Its pen-style design and rubber-coated exterior make it convenient for electricians, technicians, maintenance workers and DIY users performing basic electrical checks.

Important: A non-contact voltage tester is a detection aid, not a substitute for proper electrical isolation, lockout procedures, or a qualified electrician. Always follow applicable electrical-safety procedures.

Common Problems When Checking Electrical Circuits

Checking electrical wiring can become difficult when you need to determine whether:

• A wire is energized
• A power outlet is live
• A circuit is carrying AC voltage
• A suspected wire has a break
• You are identifying live and neutral conductors
• A switch or electrical point is receiving power
• A dark electrical panel needs additional illumination

Traditional contact-based testing can require direct access to electrical conductors.

The JIMIHOME JM-G2704 provides a non-contact detection method that can help users perform preliminary voltage checks without directly touching the conductor with the tester tip.

Smart Solution: Non-Contact AC Voltage Detection

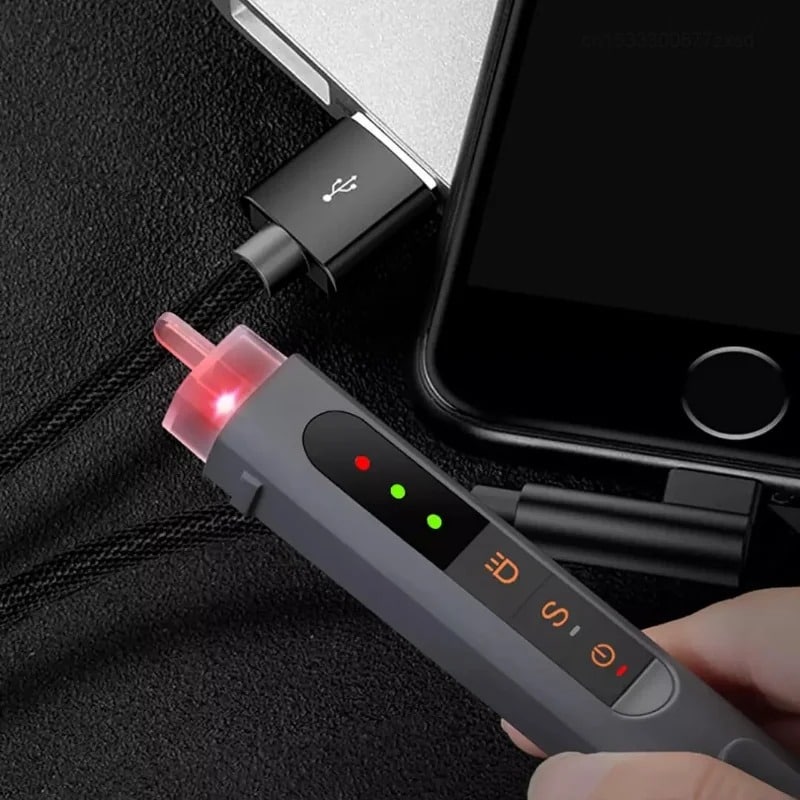

The JM-G2704 detects the electric field associated with AC voltage and provides an audible and visual indication when voltage is detected.

Basic Detection Process

Bring the tester near the suspected conductor → Detect AC voltage → Audible/visual indication

The device can also be used for certain line-break and live/neutral identification tasks described by JIMIHOME.

Key Features

1. Non-Contact Voltage Detection

The JM-G2704 is designed to detect AC voltage without requiring direct electrical contact with the conductor.

This makes it useful for preliminary checks of wires, outlets, switches and electrical circuits.

2. Wide 12V–1000V Detection Range

The official JIMIHOME specification lists a working voltage range of 12V/48V–1000V.

This broad range allows the tester to be used for various AC voltage detection applications.

3. Adjustable High & Low Sensitivity

The JM-G2704 provides high and low sensitivity modes.

This allows users to adjust the detector according to the testing environment and can help reduce unwanted detection in electrically noisy areas.

4. Audible & Visual Alarm

When voltage is detected, the tester provides sound and light indications.

The dual-alert system makes it easier to recognize voltage detection in different working environments.

5. Built-In White LED Flashlight

The integrated white LED light provides basic illumination when working around electrical outlets, wiring or panels in darker areas.

This can be particularly useful when the testing location does not have sufficient ambient lighting.

6. Live & Neutral Wire Identification

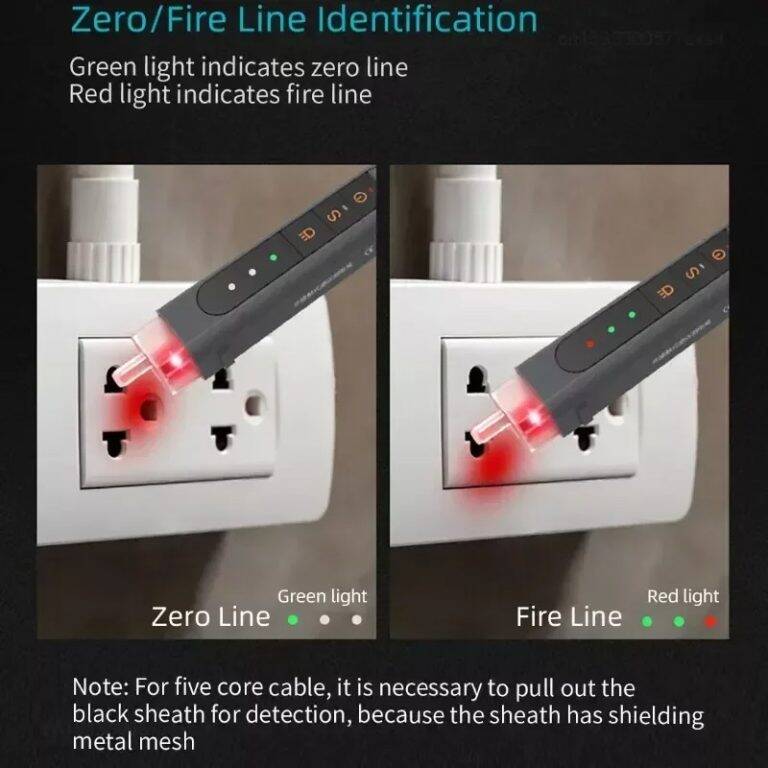

JIMIHOME describes the JM-G2704 as capable of assisting with zero/fire-line identification, with green and red light indications used for neutral/live identification in the described application.

7. Breakpoint Detection

The tester can assist with locating certain breaks in energized wires.

JIMIHOME describes a procedure in which the tester is moved along a charged wire and the change or disappearance of the voltage signal can help identify a suspected breakpoint.

8. Five-Minute Automatic Shutdown

To help conserve battery power, the JM-G2704 automatically shuts down after approximately 5 minutes of inactivity.

9. Low-Battery Indicator

The tester includes a low-battery indication system. JIMIHOME specifies that the power indicator flashes when the battery level is low.

10. Rubber-Coated Comfortable Grip

The outer shell uses a rubber-painted finish designed to provide a more comfortable and secure grip during use.

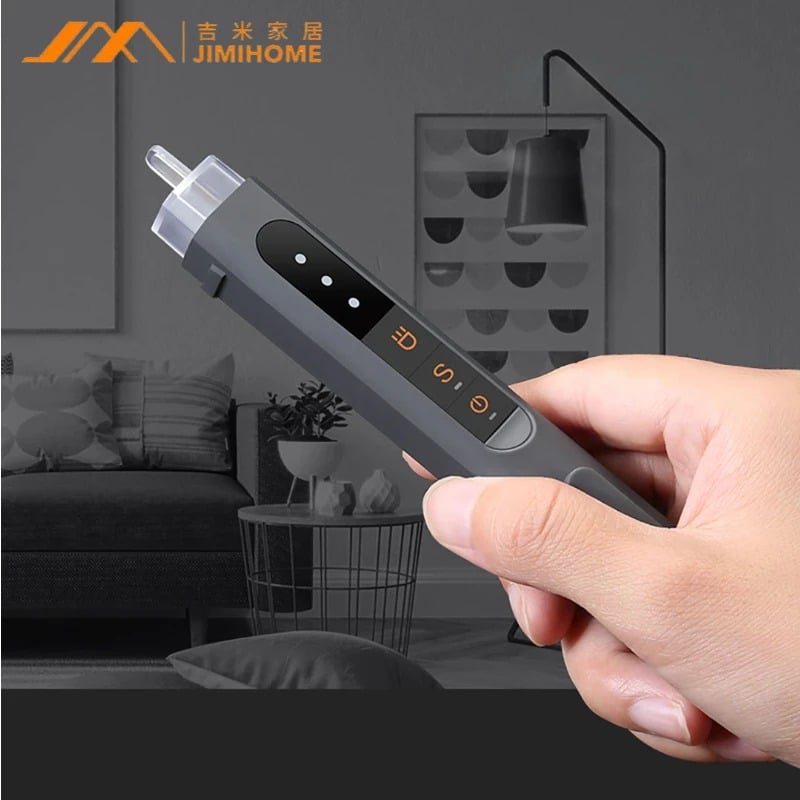

11. Lightweight & Portable Design

The JM-G2704 weighs approximately 55g according to JIMIHOME Korea and several Bangladesh retailer listings.

Its approximately 160 × 23mm pen-style dimensions make it easy to carry in a tool bag, pocket or electrical maintenance kit.

Benefits

• Non-contact AC voltage detection
• Approximately 12V/48V–1000V working range
• High/low sensitivity adjustment
• Audible voltage alarm
• Visual LED indication
• Built-in white flashlight
• Live/neutral identification assistance
• Breakpoint detection assistance
• Five-minute auto power-off
• Low-battery indication
• Compact 55g design
• Rubber-coated grip
• Battery powered
• Useful for electrical maintenance and troubleshooting

Perfect For

The JIMIHOME JM-G2704 is suitable for:

• Electricians
• Electrical technicians
• Maintenance workers
• HVAC technicians
• DIY users with appropriate electrical knowledge
• Home electrical inspection
• Circuit troubleshooting
• Socket checking
• Live-wire identification
• Electrical maintenance work

Why Choose JIMIHOME JM-G2704?

The main advantage of the JM-G2704 is its combination of non-contact voltage detection, adjustable sensitivity, audible/visual alerts and integrated lighting in a compact pen-style tool.

Instead of carrying a larger tester for every basic voltage check, the JM-G2704 can provide a convenient first-line indication of AC voltage presence.

JIMIHOME JM-G2704 vs Traditional Contact Test Pen

How to Use JIMIHOME JM-G2704

Step 1: Install the Batteries

Insert 2 × AAA 1.5V batteries according to the polarity markings. The batteries may not be included depending on the seller package.

Step 2: Turn On the Tester

Activate the JM-G2704 and select the appropriate sensitivity level.

Step 3: Select Sensitivity

Use the high or low sensitivity setting according to the testing environment.

High sensitivity can help detect weaker signals, while lower sensitivity can be useful in electrically noisy environments.

Step 4: Bring the Probe Near the Target

Bring the detector tip close to the wire, outlet or electrical point being checked.

Do not intentionally touch exposed energized conductors with the tester.

Step 5: Observe the Indicators

If AC voltage is detected, the tester provides an audible and/or visual indication.

Step 6: Use the Flashlight When Needed

Activate the built-in LED flashlight when working in a dark location.

Use Cases

Live Wire Detection

Use the non-contact sensor to check whether a suitable AC wire or electrical point is energized.

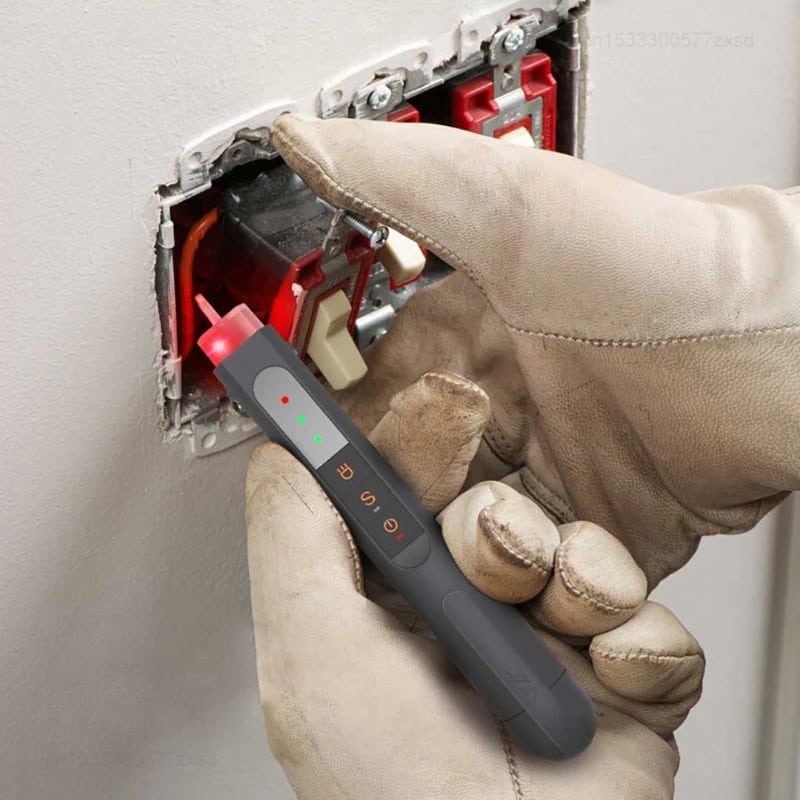

Socket Checking

The tester can assist with preliminary checks around electrical outlets without inserting a conductive probe into the socket.

Circuit Troubleshooting

Use the detector to help determine whether voltage is present along an accessible circuit.

Live & Neutral Identification

The JM-G2704 can assist with distinguishing live and neutral conductors in supported situations.

Breakpoint Checking

For certain energized wiring situations, the tester can assist in locating a point where the voltage signal changes or disappears.

Electrical Maintenance

The compact design makes it convenient for electricians and maintenance technicians to keep inside a tool bag.

Cleaning & Maintenance

To keep the JM-G2704 in good condition:

• Keep the tester clean and dry.
• Wipe the exterior with a soft, dry cloth.
• Do not immerse the tester in water.
• Keep the detection tip free from dirt and debris.
• Remove the batteries if the tool will be stored for a long period.
• Store it away from excessive heat and moisture.
• Inspect the housing before use.

Important Safety Tips

Electrical testing can be hazardous. The JM-G2704 should only be used by people who understand the risks associated with electrical systems.

• A non-contact voltage detector does not prove that a circuit is de-energized.
• Never rely on the tester as the only method of confirming electrical isolation.
• Follow proper lockout/tagout and electrical-safety procedures where applicable.
• Do not touch exposed conductors simply because the tester gives no indication.
• Test the detector on a known live source before and after important measurements when appropriate.
• Do not use a damaged tester.
• Do not operate the device in wet conditions unless specifically permitted by its instructions.
• Keep the tester away from children.
• For electrical installation or repair work beyond basic detection, use a qualified electrician.

Product Specifications

*JIMIHOME Korea lists CAT III 1000V / CAT IV 600V for the JM-G2704. Verify the markings on the supplied unit and its documentation before relying on any safety-category rating.

The official JIMIHOME product page confirms the model, 2 × AAA power supply, 12V/48V–1000V working voltage, 50/60Hz frequency, sound/light alarm, flashlight and five-minute automatic shutdown.

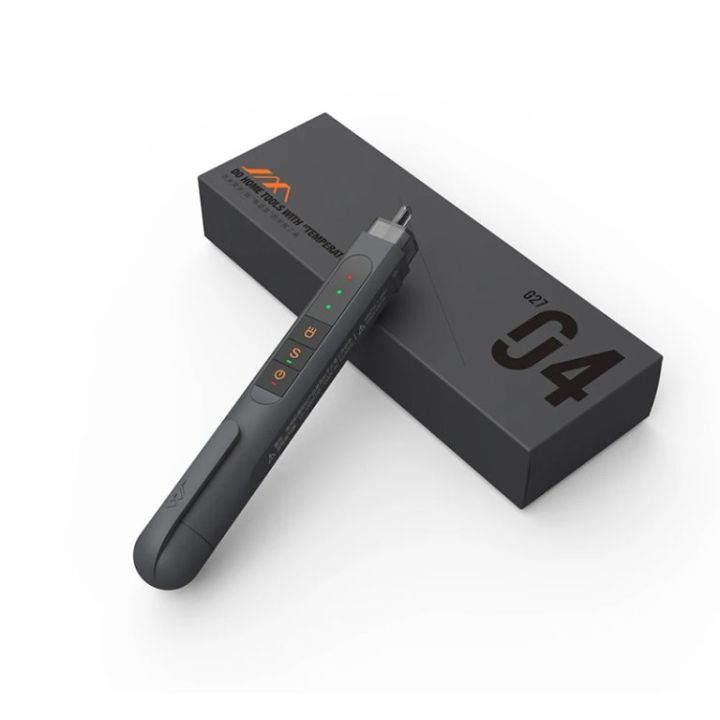

What’s in the Box?

Typical package contents may include:

• 1 × JIMIHOME JM-G2704 Non-Contact Electrical Test Pen
• User documentation
• Packaging

Note: Batteries are generally not included in the standard specification. Confirm the exact seller package before ordering.

Who Should Buy This Product?

Choose the JIMIHOME JM-G2704 if you need:

• A compact non-contact AC voltage detector
• Adjustable detection sensitivity
• Audible and visual voltage alerts
• A built-in flashlight
• A portable electrical troubleshooting tool
• Live-wire detection assistance
• A lightweight tool for electrical maintenance

It is especially useful for electricians, technicians and experienced DIY users who understand electrical safety procedures.

Why Buy from AIYOZON?

When purchasing the JIMIHOME JM-G2704 Non-Contact Electrical Test Pen from AIYOZON, you can enjoy:

• Clear product specifications
• Convenient online ordering
• Carefully selected tools and gadgets
• Product-focused customer support
• Delivery support across Bangladesh
• Assistance with product-related questions

Frequently Asked Questions

What is the JIMIHOME JM-G2704?

The JM-G2704 is a non-contact AC voltage detection pen designed to identify the presence of voltage without direct contact with an energized conductor.

What voltage range can it detect?

JIMIHOME lists a working range of approximately 12V/48V to 1000V AC, depending on the detection configuration.

Does it require direct contact with a wire?

No. It is specifically designed for non-contact voltage detection.

Does it have adjustable sensitivity?

Yes. The JM-G2704 provides high and low sensitivity modes.

Does the tester make a sound when voltage is detected?

Yes. It provides an audible alarm along with visual indication.

Does it have a flashlight?

Yes. It includes a built-in white LED flashlight for working in darker areas.

What batteries does it use?

The JM-G2704 uses 2 × 1.5V AAA batteries.

Does it automatically turn off?

Yes. It automatically shuts down after approximately 5 minutes to conserve battery power.

Can it identify live and neutral wires?

JIMIHOME describes the JM-G2704 as supporting zero/fire-line identification, with different indicator colors used in the described detection process.

Can it find a broken wire?

It can assist with breakpoint detection in certain energized-wire situations by detecting where the voltage signal changes or disappears along the wire.

Is the JM-G2704 completely safe?

No electrical testing tool should be treated as completely risk-free. The JM-G2704 is a non-contact detection aid, but users must still follow proper electrical-safety procedures and should never assume that a lack of indication proves a circuit is de-energized.

Is this a multimeter?

No. The JM-G2704 is a non-contact voltage detector, not a full multimeter. It is designed primarily to indicate the presence of AC voltage rather than provide the full range of measurements offered by a multimeter.

Final Verdict

The JIMIHOME JM-G2704 Non-Contact Electrical Test Pen is a compact and practical tool for preliminary AC voltage detection and electrical troubleshooting.

With its 12V/48V–1000V detection range, adjustable sensitivity, audible and visual alarms, built-in flashlight, low-battery indication and five-minute auto shutdown, it provides useful functionality in a lightweight pen-style design.

For electricians, technicians and experienced DIY users, the JM-G2704 can be a convenient addition to an electrical tool kit. However, it should always be used as a detection aid alongside proper electrical-safety procedures.
