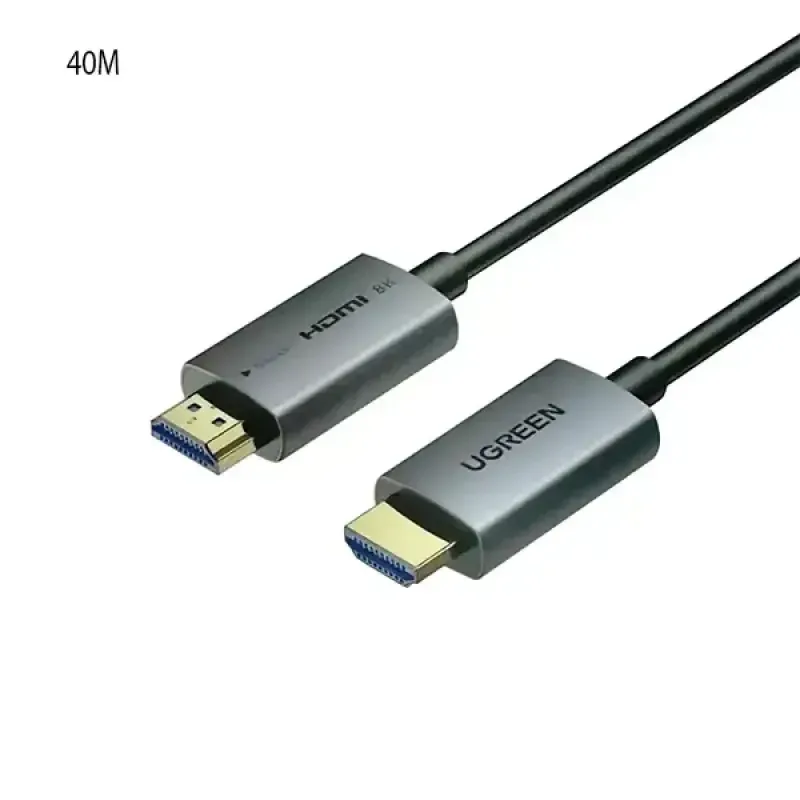

UGREEN HD183 55509 8K Fiber Optic HDMI Cable 40M – Premium HDMI 2.1 Cable with 48Gbps High-Speed Transmission
6,600.00৳
UGREEN HD183 55509 8K Fiber Optic HDMI Cable 40M – Premium HDMI 2.1 Cable with 48Gbps High-Speed Transmission
The UGREEN HD183 55509 8K Fiber Optic HDMI Cable 40M is a long-distance audio and video cable designed for connecting compatible computers, gaming consoles, media players and AV equipment to TVs, monitors, projectors and other HDMI displays. Its 40-meter length makes it particularly useful for home theaters, conference rooms, auditoriums, classrooms and professional AV installations where ordinary short HDMI cables may not reach.
Featuring fiber optic transmission, HDMI 2.1-class connectivity and up to 48Gbps bandwidth, the HD183 supports resolutions up to 8K at 60Hz under compatible system conditions. It also supports modern display technologies and audio formats, including HDR10, HDR10+, Dolby Vision, Variable Refresh Rate (VRR), Dolby Atmos and DTS.
Unlike a conventional short copper HDMI cable, this active optical cable is designed to carry high-bandwidth signals over a much longer distance. Its HDMI male-to-male connectors and aluminum connector housings make it suitable for connecting equipment located far apart without adding a separate HDMI extender box.
Common Problems with Long-Distance HDMI Connections
Connecting a source device to a distant display can be challenging when the cable run is long.
Common problems include:
- Signal instability with unsuitable long cables
- Difficulty connecting a projector across a large room
- Limited placement options for a TV or monitor
- Extra equipment required for some long-distance installations
- Loss of access to a source device positioned far from the display
- Inconsistent support for high-resolution video and advanced audio features
The UGREEN HD183 40M Fiber Optic HDMI Cable provides a single-cable connection designed for long-distance, high-bandwidth HDMI installations.
Smart Solution: Long-Distance Fiber Optic HDMI Transmission
The UGREEN HD183 uses an active optical cable design to transmit HDMI audio and video signals over a 40-meter connection.
Its fiber optic construction supports high-bandwidth transmission over long cable runs, while the HDMI connectors allow it to connect directly to compatible HDMI source and display ports. The cable is directional, so the correct connector must be connected to each device.
Connection flow:
Computer / Console / Media Player → Source Connector → 40M Fiber Optic HDMI Cable → Display Connector → TV / Monitor / Projector
Key Features
1. 40-Meter Long-Distance Connection
The HD183 provides a 40-meter cable length, making it suitable for installations where the source and display are separated by a considerable distance.
Potential applications include:
- Home theater systems
- Conference and meeting rooms
- Projector installations
- Classrooms and lecture halls
- Gaming rooms
- Professional AV setups
- Digital signage installations
Measure the complete cable route before ordering, including vertical sections, bends and the extra length needed at both ends.
2. Up to 8K@60Hz Resolution
The cable is listed as supporting resolutions up to 8K at 60Hz, equivalent to 7680 × 4320 pixels, when the source, display and complete connection support the required mode. Compatible setups can also support lower resolutions and refresh rates.
This makes it suitable for compatible high-resolution displays, projectors, PCs and entertainment systems.
Important: The cable transports the signal supplied by the source device. It cannot upgrade a 1080p source or display to 8K.
3. High-Speed 48Gbps Bandwidth
The UGREEN HD183 supports up to 48Gbps bandwidth, providing the high data capacity required for supported high-resolution HDMI signals and compatible advanced display features.
The actual video mode depends on the capabilities and settings of every device in the connection.
4. Fiber Optic Cable Technology
The fiber optic construction is designed for long-distance signal transmission.
It is useful when routing a cable across a large room or between equipment racks and distant displays, where a standard short HDMI cable may not be practical.
5. HDMI 2.1-Class Connectivity
The HD183 is marketed as an HDMI 2.1 fiber optic cable and is listed with support for modern HDMI features. It is also backward compatible with compatible earlier HDMI equipment.
The available features still depend on the HDMI ports, source device, display and any intermediate equipment.
6. HDR10, HDR10+ and Dolby Vision
The cable is listed as supporting HDR10, HDR10+ and Dolby Vision for compatible equipment. These technologies can provide a wider range of brightness, contrast and color detail when supported by the source, content and display.
A compatible cable alone does not add HDR to content or devices that do not support it.
7. VRR, QMS, QFT and ALLM Support
The HD183 is listed with support for advanced HDMI features such as:
- VRR: Variable Refresh Rate for compatible gaming setups
- QMS: Quick Media Switching on supported equipment
- QFT: Quick Frame Transport on supported equipment
- ALLM: Auto Low Latency Mode on compatible TVs and gaming devices
These functions require support from the connected devices and the selected display settings.
8. Immersive Audio Compatibility
The cable is listed as supporting multiple digital audio formats, including:
- LPCM
- Dolby Digital AC-3
- DTS
- DTS-HD Master Audio
- Dolby TrueHD
- DTS
- Dolby Atmos
Supported audio formats depend on the source, receiver or soundbar, display connection and content. Listed audio sampling support reaches up to 24-bit/192kHz for compatible equipment.
9. HDCP 2.3 Support
The HD183 is listed with HDCP 2.3 and backward compatibility, helping support protected digital content on compatible equipment. The connected devices must also support the required HDCP version.
10. Aluminum Connector Housing
The connector housings use an aluminum shell, providing a solid enclosure for the HDMI connections. The cable is also listed with fiber optic construction and a gray finish.
11. HDMI Male-to-Male Connectors
The cable has full-size HDMI male connectors at both ends for connecting an HDMI output to an HDMI input.
It does not convert HDMI into USB-C, DisplayPort, VGA or another connector type.
12. Suitable for Home and Professional AV Systems
With its long reach and high-bandwidth specifications, the HD183 is suitable for compatible home entertainment, gaming, presentation and professional display installations.
Benefits of UGREEN HD183 55509
- 40-meter long-distance HDMI connection
- Supports up to 8K@60Hz on compatible systems
- Up to 48Gbps bandwidth
- Fiber optic signal transmission
- HDMI 2.1-class features
- HDR10, HDR10+ and Dolby Vision support
- VRR, QMS, QFT and ALLM support
- Dolby Atmos, DTS and other digital audio formats
- HDCP 2.3 compatibility
- HDMI male-to-male connection
- Aluminum connector housings
- Suitable for TVs, monitors, projectors and compatible AV systems
Perfect For
Home Theater Systems
Connect an AV source or equipment cabinet to a distant TV or projector without relying on a short cable.
Projector Installations
Use the 40-meter length to connect a compatible HDMI source to a projector mounted across a room or in a ceiling installation.
Conference Rooms
Connect a presentation computer or AV system to a display positioned far from the meeting table.
Classrooms and Auditoriums
Route an HDMI signal between presentation equipment and a distant projector or screen.
Gaming Setups
Connect a compatible gaming PC or console to a distant display while retaining supported HDMI features.
Professional AV Installations
Use the cable in suitable point-to-point installations where long-distance HDMI connectivity is required.
Why Choose UGREEN HD183 40M Fiber Optic HDMI Cable?
A 40-meter HDMI run requires careful cable selection, especially when the installation needs high-resolution video and modern display features.
The UGREEN HD183 55509 combines a long 40-meter length with 48Gbps bandwidth and listed 8K@60Hz support. It is designed to simplify long-distance HDMI connections between compatible source devices and displays without requiring a separate extender unit.
UGREEN HD183 vs. Standard HDMI Cable
| Feature | UGREEN HD183 40M | Standard Short HDMI Cable |
|---|---|---|
| Cable Length | 40 meters | Usually shorter |
| Cable Technology | Fiber optic / active optical design | Often copper |
| Maximum Listed Resolution | Up to 8K@60Hz | Depends on model |
| Maximum Listed Bandwidth | 48Gbps | Depends on model |
| HDR Support | HDR10, HDR10+, Dolby Vision | Depends on model |
| Gaming Features | VRR, QMS, QFT, ALLM listed | Depends on model |
| Audio Formats | Multiple Dolby, DTS and LPCM formats | Depends on model |
| Connector Type | HDMI male-to-male | Varies |
| Directional Connection | Yes; check connector labels | Depends on cable |
| Typical Application | Long-distance AV installations | Everyday short connections |
Specifications for standard HDMI cables vary by model. Always compare the exact cable rating before choosing an alternative.
How to Use UGREEN HD183 55509
Step 1: Measure the Cable Route
Measure the complete route between the source device and the display. Include vertical sections, turns and enough slack to connect both ends without pulling on the ports.

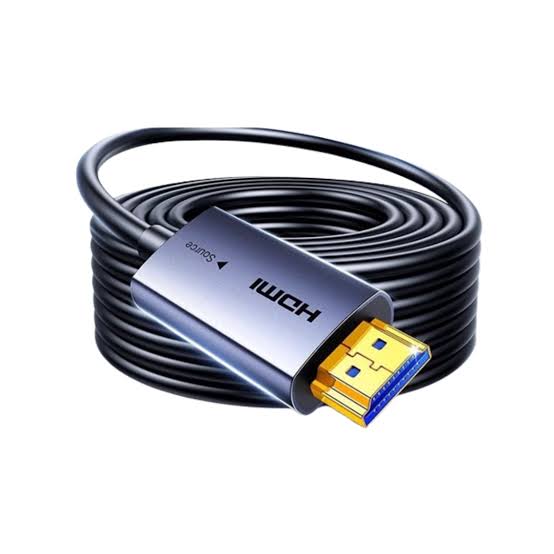

Step 2: Identify the Connector Labels
Check the markings on the cable ends before installation. Active optical HDMI cables are directional, and the main video signal must travel from Source to Display.
Step 3: Connect the Source End
Connect the end marked Source to the HDMI output of your computer, gaming console, media player or AV equipment.
Step 4: Connect the Display End
Connect the end marked Display to the HDMI input of your TV, monitor, projector or compatible display.
Step 5: Select the Correct HDMI Input
Power on the devices and select the appropriate HDMI input on the display.
Step 6: Configure the Video Mode
Choose a resolution and refresh rate supported by both devices. Enable HDR, VRR or other advanced features only when the source and display support them.
Step 7: Test Before Final Installation
Test picture and audio before routing the cable through walls, ceilings or conduits. This makes it easier to correct connection direction or compatibility issues before the cable becomes difficult to access.
Recommended Use Cases
8K Home Entertainment
Connect a compatible 8K source to an 8K television or display, provided the complete system supports the required mode.
Long-Distance 4K Display
Use the cable for a compatible 4K display or projector installation where a 40-meter connection is needed.
Office Presentations
Connect presentation equipment to a distant meeting-room screen or projector.
Gaming and Media Rooms
Position a gaming PC, console or media player away from the display while maintaining a suitable HDMI connection.
AV Equipment Racks
Connect an equipment rack to a distant screen in a compatible point-to-point setup.
Cleaning & Maintenance
- Disconnect the cable carefully before cleaning the connectors.
- Wipe the exterior with a dry, soft cloth.
- Keep the HDMI connector contacts clean and dry.
- Avoid pulling the cable by its connectors.
- Protect the connector ends while routing the cable.
- Avoid sharp bends, crushing, kinking or excessive tension.
- Do not cut, splice or attempt to re-terminate the fiber optic cable.
- Keep connector labels accessible until the installation has been tested.
Important Usage Tips
- Follow the Source-to-Display direction. Reversing the ends can prevent the connection from working correctly.
- Verify that the source and display support the resolution and refresh rate you intend to use.
- Check intermediate equipment such as receivers, switches, wall plates and adapters for compatibility.
- Test the complete connection before concealing the cable.
- Route the cable carefully and avoid tight bends or crushing.
- Do not assume that every feature listed for the cable will be available on every connected device.
- For the most reliable high-bandwidth connection, test the cable directly between the source and display before adding intermediate equipment.
Product Specifications
| Specification | Details |
|---|---|
| Brand | UGREEN |
| Model | HD183 |
| Product Code | 55509 |
| Product Type | Fiber Optic HDMI Cable |
| HDMI Interface | HDMI male-to-male |
| HDMI Standard | HDMI 2.1-class / listed as HDMI 2.1 |
| Cable Length | 40 meters |
| Maximum Listed Resolution | Up to 8K@60Hz |
| Maximum Bandwidth | 48Gbps |
| HDCP | 2.3, backward compatible |
| HDR Support | HDR10, HDR10+, Dolby Vision |
| Gaming / Display Features | VRR, QMS, QFT, ALLM, 3D |
| Audio Formats | LPCM, AC-3, DTS, DTS-HD Master Audio, Dolby TrueHD, DTS, Dolby Atmos |
| Audio Sampling | Up to 24-bit/192kHz for compatible equipment |
| Color Depth | 24-bit / 30-bit / 36-bit / 48-bit listed |
| Connector Housing | Aluminum shell |
| Cable Construction | Fiber optic / active optical design |
| Color | Gray / black, depending on listing |
| Connection Direction | Source → Display |
| Typical Use | TVs, monitors, projectors, gaming and AV installations |
| Warranty | One year listed by several Bangladesh retailers; confirm with the seller |
The 40-meter length, 48Gbps bandwidth, 8K@60Hz support, HDCP 2.3 and listed audio/display features are reported by multiple Bangladesh retailer specifications. Actual performance depends on the complete connected system.
What’s in the Box?
Typical package contents include:
- 1 × UGREEN HD183 55509 40M Fiber Optic HDMI Cable
Check the seller’s package details for any additional documentation or accessories included with the supplied unit.
Who Should Buy This Product?
The UGREEN HD183 55509 is a suitable choice for customers who:
- Need a 40-meter HDMI cable
- Want fiber optic connectivity for a long cable run
- Need up to 8K@60Hz support on compatible equipment
- Are setting up a projector or home theater
- Need to connect equipment across a conference room
- Want support for modern HDR and gaming features
- Need a single-cable connection between a source and a distant display
If your devices are close together, a shorter HDMI cable may be more practical and economical. The HD183 is most useful when the installation specifically requires its long reach.
Why Buy from AIYOZON?
When purchasing the UGREEN HD183 55509 8K Fiber Optic HDMI Cable 40M from AIYOZON, you can enjoy a convenient shopping experience for your AV connectivity needs.
- Clear product specifications
- Convenient online ordering
- Product assistance before purchase
- Delivery support
- Access to practical connectivity accessories
- Customer support for product-related questions
Check the exact product code, cable length, warranty and return terms before placing your order.
Frequently Asked Questions
What is the UGREEN HD183 55509?
It is a 40-meter fiber optic HDMI cable listed with up to 8K@60Hz resolution support and 48Gbps bandwidth.
Does the UGREEN HD183 support 8K@60Hz?
Yes, it is listed as supporting up to 8K@60Hz when the source, display and complete connection support that video mode.
What is the bandwidth of this cable?
The listed maximum bandwidth is 48Gbps.
Is the UGREEN HD183 suitable for a projector?
Yes. Its 40-meter length makes it suitable for compatible long-distance projector installations, including conference rooms and home theaters.
Can I use it with a gaming console?
It can connect a compatible HDMI gaming console to a compatible display. Available resolution, refresh rate, HDR and gaming features depend on the console, display and any intermediate equipment.
Does it support Dolby Atmos?
The product listings identify support for Dolby Atmos and other digital audio formats. The connected source and audio equipment must also support the selected format.
Does it support HDR and Dolby Vision?
Yes. HDR10, HDR10+ and Dolby Vision are listed as supported features, subject to compatibility with the source, content and display.
Is the cable bidirectional?
The cable is directional for the main HDMI audio/video signal. Connect the Source end to the HDMI output and the Display end to the receiving display. Do not reverse the ends.
Does it require a separate power adapter?
The cable is sold as a single active optical HDMI cable. Confirm the exact model’s installation instructions before use, and do not add an external power source unless the manufacturer specifically requires it.
Can I use it with an older HDMI device?
It is listed as backward compatible with earlier HDMI equipment. However, the available video and audio features will be limited by the capabilities of the connected devices.
What warranty does the UGREEN HD183 have?
Several Bangladesh retailer listings specify a one-year warranty. Warranty coverage and claim conditions depend on the seller and the product supplied, so confirm them before ordering.
Final Verdict
The UGREEN HD183 55509 8K Fiber Optic HDMI Cable 40M is designed for long-distance HDMI installations that require high-bandwidth video and audio connectivity. Its 40-meter length, 48Gbps bandwidth, up to 8K@60Hz support, HDR compatibility, advanced gaming features and wide audio-format support make it a useful option for compatible home theaters, projectors, conference rooms and professional AV setups.
For best results, verify your devices’ supported modes, connect the cable in the correct direction and test the complete connection before installing it permanently.
Upgrade Your Long-Distance AV Connection
- 40-meter fiber optic HDMI cable
- Up to 8K@60Hz resolution support
- 48Gbps bandwidth
- HDMI 2.1-class features
- HDR10, HDR10+ and Dolby Vision
- VRR, QMS, QFT and ALLM support
- Dolby Atmos and DTS listed
- HDCP 2.3 compatibility
- Ideal for projectors, home theaters and AV installations
Reviews
There are no reviews yet.
