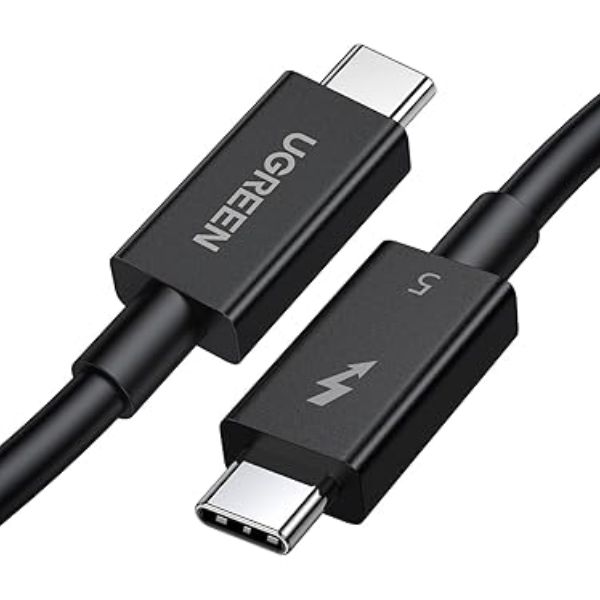

UGREEN Thunderbolt 5 240W USB-C Cable 1M 120Gbps – 16K, 8K, 4K 144Hz

The UGREEN Thunderbolt 5 240W USB-C Cable 1M is a high-performance USB-C cable designed for users who need extremely fast data transfer, high-resolution display connectivity and powerful USB-C charging from a single cable.

Built around Thunderbolt 5 technology, the cable supports up to 80Gbps bidirectional data transfer and up to 120Gbps one-way bandwidth in video-priority mode. It also supports USB Power Delivery 3.1 with up to 240W charging at 48V/5A when paired with compatible devices and chargers.

For compatible DisplayPort 2.1 devices, UGREEN lists support for configurations including 16K@30Hz, dual 8K@60Hz and triple 4K@144Hz displays. The cable is also backward-compatible with Thunderbolt 4, Thunderbolt 3 and USB4/USB-C protocols, subject to the capabilities of the connected devices.

Common Problems with Standard USB-C Cables

Not every USB-C cable provides the same level of performance.

Standard charging or USB-C cables may have limitations such as:

• Lower charging power
• Slower data transfer
• Limited display resolution
• Limited multi-monitor support
• No Thunderbolt compatibility
• No support for high-refresh-rate displays
• Different cables needed for charging, data and video
• Reduced performance with professional workflows

For demanding laptops, docks, external SSDs and high-resolution displays, a high-bandwidth Thunderbolt 5 cable can simplify connectivity.

Smart Solution for High-Speed USB-C Connectivity

The UGREEN Thunderbolt 5 USB-C Cable combines high-speed data, display connectivity and high-power charging in a single 1-meter USB-C cable.

You can use it with compatible laptops, Thunderbolt docks, external SSDs, monitors and other USB-C devices while taking advantage of the maximum capabilities supported by the connected hardware.

The cable uses an E-Marker chip to identify supported power requirements and help manage charging according to the connected device and charger.

Key Features

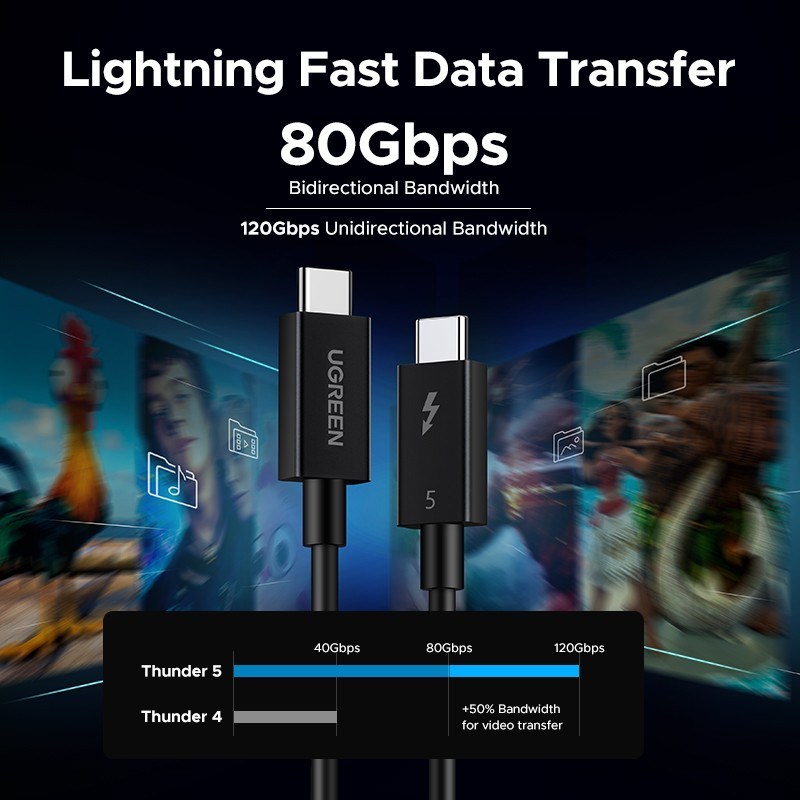

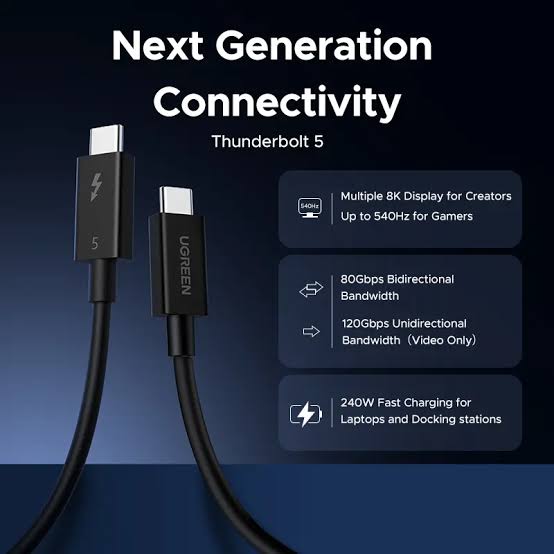

1. Thunderbolt 5 Technology

The cable is designed around Thunderbolt 5, providing a significant bandwidth increase over earlier Thunderbolt generations.

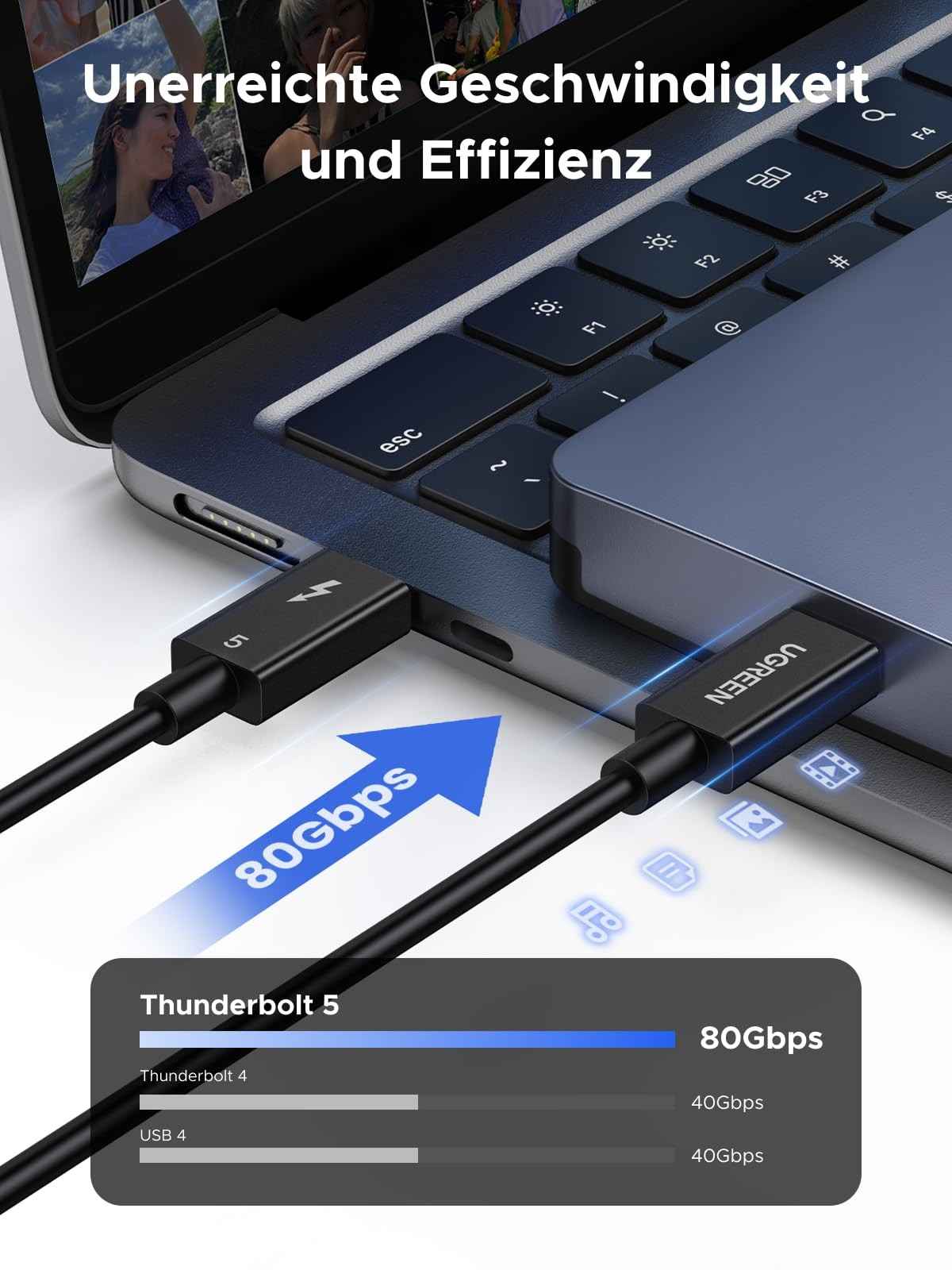

It supports up to 80Gbps bidirectional data transfer, making it suitable for demanding workloads such as large file transfers, external SSD storage, video editing and professional data workflows.

2. Up to 120Gbps One-Way Video Bandwidth

Thunderbolt 5 can provide up to 120Gbps one-way bandwidth in Bandwidth Boost/video-priority mode.

This additional bandwidth is designed for demanding multi-display configurations and high-resolution video workflows.

Important: 120Gbps is not the standard bidirectional data-transfer rate. Normal Thunderbolt 5 bidirectional data performance is up to 80Gbps.

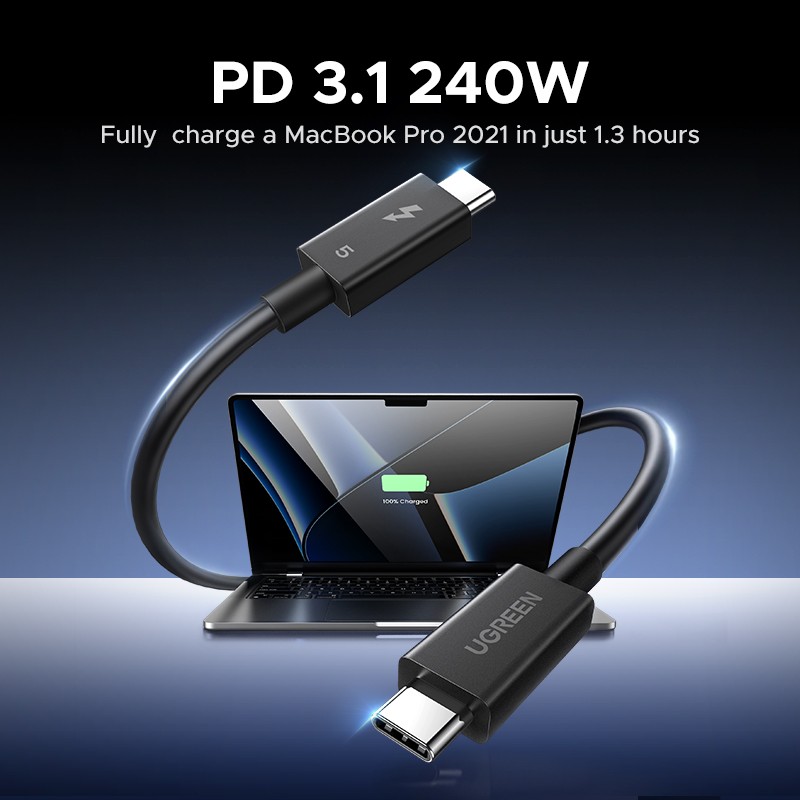

3. 240W USB Power Delivery

The cable supports USB PD 3.1 up to 240W, using up to 48V/5A with compatible chargers and devices.

This makes it suitable for high-power USB-C laptops and other compatible devices that support USB PD 3.1.

The actual charging power is negotiated between the charger and connected device, so a 240W-rated cable does not force every device to charge at 240W.

4. Up to 16K Display Support

For compatible DisplayPort 2.1 systems, UGREEN lists support for:

• 1 × 16K@30Hz display
• 2 × 8K@60Hz displays
• 3 × 4K@144Hz displays

The actual resolution and number of displays depend on the host device, GPU, dock, monitor and supported display protocols.

5. 4K@144Hz Support

The cable can support high-refresh-rate configurations such as 4K@144Hz when the connected devices and display chain support the required specifications.

This makes it useful for gaming monitors and professional displays where both high resolution and high refresh rate are important.

6. Backward Compatibility

The Thunderbolt 5 cable is designed to work with a wide range of previous-generation USB-C and Thunderbolt standards.

UGREEN lists compatibility with:

• Thunderbolt 5
• Thunderbolt 4
• Thunderbolt 3
• USB4
• USB 3.x
• USB 2.0

Actual performance will always fall back to the maximum capability supported by the connected devices and protocol.

7. Intel Thunderbolt Certification

UGREEN’s current Thunderbolt 5 product information identifies the cable as Intel-certified Thunderbolt 5.

This provides additional assurance that the cable is designed for the Thunderbolt 5 specification rather than simply using USB-C connectors with a high advertised speed.

8. E-Marker Chip

The cable includes an E-Marker chip that communicates cable capabilities to compatible devices.

This helps the connected system identify supported power and performance characteristics and manage charging appropriately.

9. 1-Meter Length

The 1-meter length provides a practical balance between desktop connectivity and cable management.

It is suitable for connecting:

• Laptop to dock
• Laptop to monitor
• Laptop to external SSD
• Dock to monitor
• USB-C charger to compatible device
• Thunderbolt accessories

10. High-Performance Professional Workflows

The combination of Thunderbolt 5 bandwidth, high-power charging and advanced display support makes the cable suitable for demanding workflows such as:

• 4K/8K video editing
• Large file transfers
• External SSD workflows
• Professional photography
• 3D design
• Multi-monitor workstations
• High-refresh-rate gaming
• Thunderbolt docking stations

Benefits

• Thunderbolt 5 connectivity
• Up to 80Gbps bidirectional data transfer
• Up to 120Gbps one-way video bandwidth
• Up to 240W USB PD 3.1 charging
• 48V/5A power capability
• Up to 16K display support
• Dual 8K@60Hz support
• Triple 4K@144Hz support
• High-refresh-rate display connectivity
• Backward compatibility with Thunderbolt 3/4
• USB4 compatibility
• E-Marker chip
• Intel Thunderbolt certification
• 1-meter practical length
• Suitable for gaming and professional workstations

Perfect For

The UGREEN Thunderbolt 5 240W USB-C Cable 1M is ideal for:

• Thunderbolt 5 laptop users
• MacBook users
• Windows laptop users
• Professional video editors
• Graphic designers
• 3D creators
• Photographers
• Gamers
• Multi-monitor workstation users
• External SSD users
• Thunderbolt dock users
• High-power USB-C laptop users
• Professionals working with large files

Why Choose UGREEN Thunderbolt 5 Cable?

A basic USB-C cable may handle charging or everyday data transfer, but demanding setups often require much greater bandwidth.

The UGREEN Thunderbolt 5 USB-C Cable brings high-speed data, high-resolution display connectivity and up to 240W USB PD into one cable.

Its combination of 80Gbps bidirectional data, up to 120Gbps video bandwidth, 240W charging and advanced multi-display support makes it suitable for modern high-performance computing environments.

UGREEN Thunderbolt 5 Cable vs Standard USB-C Cable

*Display configurations depend on the host device, GPU, dock, monitor and supported DisplayPort/Thunderbolt features.

How to Use

Step 1: Check Device Compatibility

Confirm that your laptop, dock, monitor, SSD or other USB-C device supports the required Thunderbolt, USB4 or USB-C protocol.

For maximum Thunderbolt 5 performance, compatible Thunderbolt 5 hardware is required.

Step 2: Connect the Cable

Insert one USB-C connector into the source device and the other into the destination device.

The reversible USB-C connector makes connection simple.

Step 3: Connect a Compatible Charger

For high-power charging, connect a compatible USB PD 3.1 charger to the appropriate device or dock.

The cable supports up to 240W, but the charger and device must also support the required charging level.

Step 4: Connect Your Display or Dock

Use the cable to connect a compatible Thunderbolt dock, USB-C monitor or other high-bandwidth accessory.

Step 5: Transfer Data or Use Your Display

Once connected, the system should automatically negotiate the highest supported protocol and performance level.

Step 6: Confirm Your System’s Actual Speed

If you need maximum bandwidth, check the operating system, Thunderbolt utility or device specifications to confirm that the connection is operating at the expected Thunderbolt 5 level.

Use Cases

High-Speed External SSD

Use the cable with a compatible Thunderbolt 5 SSD enclosure for fast transfer of large video, photography and project files.

Multi-Monitor Workstation

Connect compatible Thunderbolt hardware to multiple high-resolution displays for professional productivity.

4K/8K Video Editing

Move large media files between high-performance storage and a compatible computer.

Gaming

Connect a compatible gaming laptop, Thunderbolt dock or high-refresh-rate monitor for advanced display configurations.

Laptop Docking

Use one cable to connect a Thunderbolt 5 laptop to a compatible dock, monitor, storage and other peripherals.

High-Power Laptop Charging

Pair the cable with a compatible USB PD 3.1 charger and laptop that support high-wattage USB-C charging.

Professional Creative Work

Support workflows involving large 3D models, high-resolution media and other bandwidth-intensive files.

Cleaning & Maintenance

• Keep the cable dry.
• Avoid exposing the USB-C connectors to water or excessive moisture.
• Disconnect the cable by holding the connector rather than pulling the cable itself.
• Avoid sharply bending the cable near the connectors.
• Keep the connectors free from dust and debris.
• Do not place heavy objects on the cable.
• Store the cable loosely rather than tightly winding it.
• Avoid using abrasive cleaners on the cable or connectors.

Important Usage Tips

• A 240W-rated cable does not guarantee 240W charging; the charger and device must also support the required PD level.
• 120Gbps is one-way video bandwidth, not normal bidirectional data transfer.
• Normal Thunderbolt 5 bidirectional data transfer is up to 80Gbps.
• Maximum display resolution depends on the connected GPU, dock, monitor and protocol.
• For 16K/8K/4K high-refresh configurations, every component in the display chain must support the required standard.
• Thunderbolt 3/4 devices will operate according to their own maximum supported specifications.
• USB-C connector compatibility does not mean every USB-C device supports Thunderbolt.
• Use a compatible PD 3.1 charger for high-power charging.
• The cable cannot upgrade a device that does not support Thunderbolt 5 or the required display protocol.

Important: The advertised 120Gbps figure refers to Thunderbolt 5’s Bandwidth Boost/video-priority mode. For ordinary bidirectional data transfer, the maximum is 80Gbps.

Product Specifications

*Maximum display configurations depend on the connected devices and supported DisplayPort/Thunderbolt implementation.

What’s in the Box?

Typical package contents include:

• 1 × UGREEN Thunderbolt 5 USB-C Cable 1M
• 1 × Product Documentation / Packaging

Package contents may vary slightly by regional or seller version.

Who Should Buy This Product?

Choose the UGREEN Thunderbolt 5 240W USB-C Cable 1M if you need:

• Thunderbolt 5 connectivity
• Up to 80Gbps bidirectional data
• Up to 120Gbps video bandwidth
• 240W USB PD 3.1 charging
• High-resolution display support
• High-refresh-rate gaming display support
• Multi-monitor workstation connectivity
• High-speed external SSD performance
• A premium cable for Thunderbolt docks
• One cable for data, video and power

If your devices only support basic USB-C charging or USB 2.0/3.x data, you may not benefit from the full Thunderbolt 5 performance.

Why Buy from AIYOZON?

When purchasing the UGREEN Thunderbolt 5 240W USB-C Cable 1M from AIYOZON, you can enjoy convenient access to a high-performance cable designed for modern laptops, docks, monitors, storage devices and professional workstations.

Before ordering, verify that your laptop, dock, monitor and charger support the Thunderbolt 5, USB4, DisplayPort and PD features you want to use.

Frequently Asked Questions

What is the data speed of the UGREEN Thunderbolt 5 cable?

The cable supports up to 80Gbps bidirectional data transfer. Thunderbolt 5 can also provide up to 120Gbps one-way bandwidth in video-priority mode.

Does it support 240W charging?

Yes. The cable supports up to 240W USB Power Delivery 3.1, using up to 48V/5A with compatible equipment.

Does 120Gbps mean 120Gbps file-transfer speed?

No. The standard bidirectional data-transfer rate is up to 80Gbps. The 120Gbps figure refers to one-way video bandwidth in Thunderbolt 5 Bandwidth Boost mode.

Does it support 16K video?

Yes, UGREEN lists support for up to 16K@30Hz on compatible DisplayPort 2.1 systems.

Can it support multiple monitors?

Yes. UGREEN lists configurations of up to two 8K@60Hz displays or three 4K@144Hz displays on compatible systems.

Is it compatible with Thunderbolt 4?

Yes. The cable is backward-compatible with Thunderbolt 4 and Thunderbolt 3, with performance limited by the connected hardware.

Is it compatible with USB4?

Yes. UGREEN lists compatibility with USB4 as well as other USB-C protocols.

Can I use it with a MacBook?

Yes, provided the specific MacBook and connected accessories support the required USB-C/Thunderbolt functionality. UGREEN lists MacBook among compatible USB-C devices.

Can I use it for gaming?

Yes. It is suitable for compatible high-refresh-rate gaming setups, including configurations such as 4K@144Hz, when the gaming laptop/PC, monitor and other components support the required specifications.

Does the cable include an E-Marker chip?

Yes. The cable uses an E-Marker chip to communicate supported power and cable capabilities.

What length is the cable?

This version is 1 meter long. UGREEN’s current listing identifies the product as a 1m Thunderbolt 5 cable.

Can it charge every USB-C laptop at 240W?

No. 240W is the cable’s maximum rating, not a guaranteed charging speed for every device. The charger, laptop and charging protocol must all support the required power level.

Final Verdict

The UGREEN Thunderbolt 5 240W USB-C Cable 1M is designed for users who need extremely high bandwidth, powerful USB-C charging and advanced display connectivity in a single cable.

With up to 80Gbps bidirectional data transfer, up to 120Gbps one-way video bandwidth, 240W PD 3.1 charging, 16K display support, multi-monitor capability and backward compatibility with Thunderbolt 3/4 and USB4, it is well suited to high-performance laptops, professional workstations, external SSDs, gaming setups and Thunderbolt docking stations.
